06-5022-6500-A7|RESERVOIR SERVICE UNIT.

06-5022-6500-A7

RESERVOIR SERVICE UNIT.

  • Unit of Measure: EA
  • ECCN: EAR99
  • Weight: 18 Pounds
  • Dimensions : 14.38 (L) x 10 (W) x 21 (H) Inches

DESCRIPTION

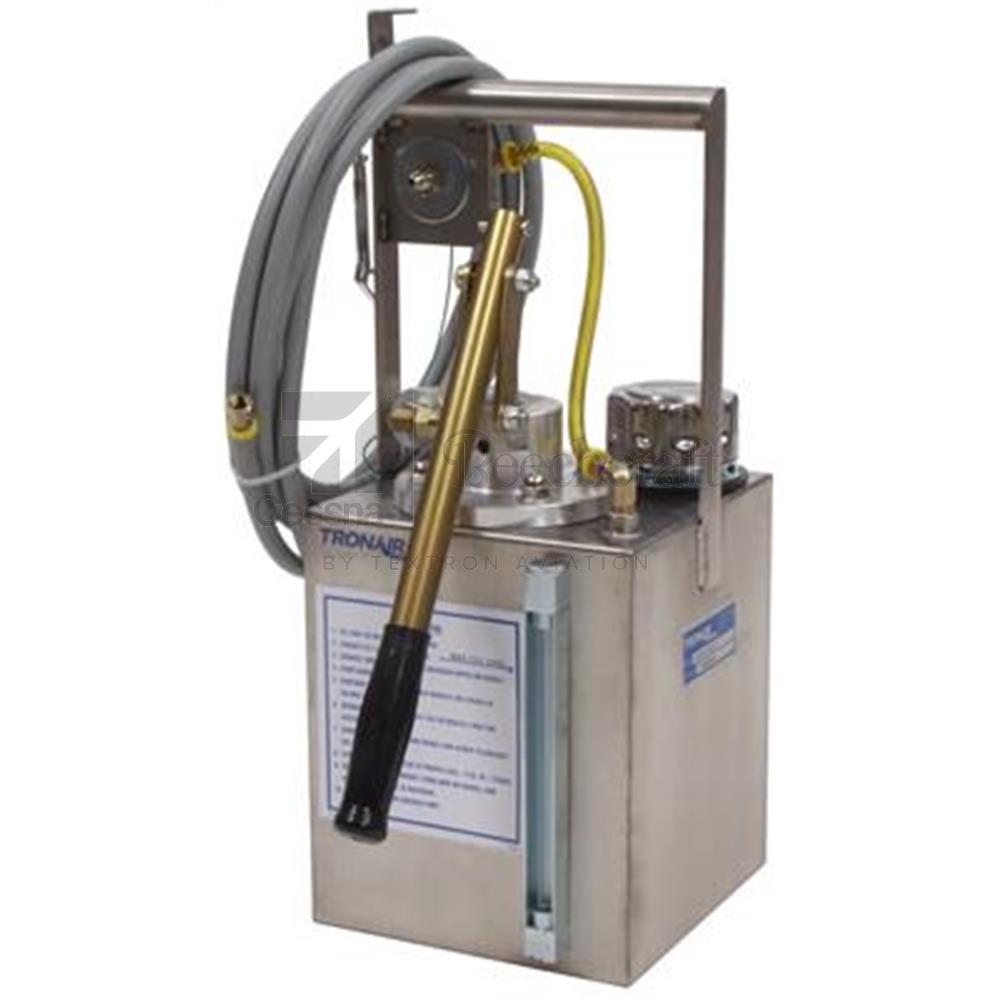

Military Reservoir Servicing Unit
  • NSN 4940-01-504-5279
  • Fluid Type MIL-PRF-5606 / MIL-PRF-83282
  • Military Approved
  • Servicing of MIL-PRF-5606 / MIL-PRF-83282 hydraulic reservoir fluid
  • Stainless steel construction
  • 2 gal (7.6 l) reservoir
  • Sealed fill cap with pressure relief and vacuum breaker valves
  • 2 micron filtration (beta rating > 1000 @ 4µm per ISO 4572)
  • 200 psi (13.8 bar) maximum pressure
  • 2 in (5 cm) filler port
  • High displacement hand pump (13 stokes per quart)
  • 15 ft (4.6 m) #6 hose with 37° JIC female swivel connector
  • Bulkhead plate for installation of size #12 bulkhead quick disconnect coupling half (coupling not included)
  • Adaptor fittings for connecting size #12, MS33656 and MS33657 quick disconnect couplings
  • 8 in (20.3 cm) sight glass
  • Hose storage bracket

Each delivered OEM part will meet the original manufacturer’s specification or, if the part is not an OEM part, it will meet or exceed the original manufacturer’s specification. Please contact metadata@txtav.com if part information appears to be incorrect.
