101-4024-5 S

KIT-INSTL INCONEL WING BOLTS F

Unit of Measure: EA
ECCN: 9A991
Part Type: Proprietary
Packaged Weight: 1.35 Pounds
Packaged Dimensions : 9.95 (L) x 13.55 (W) x 1.7 (H) Inches

DESCRIPTION

Kit Information - Wing Bolt Installation Lower Forward

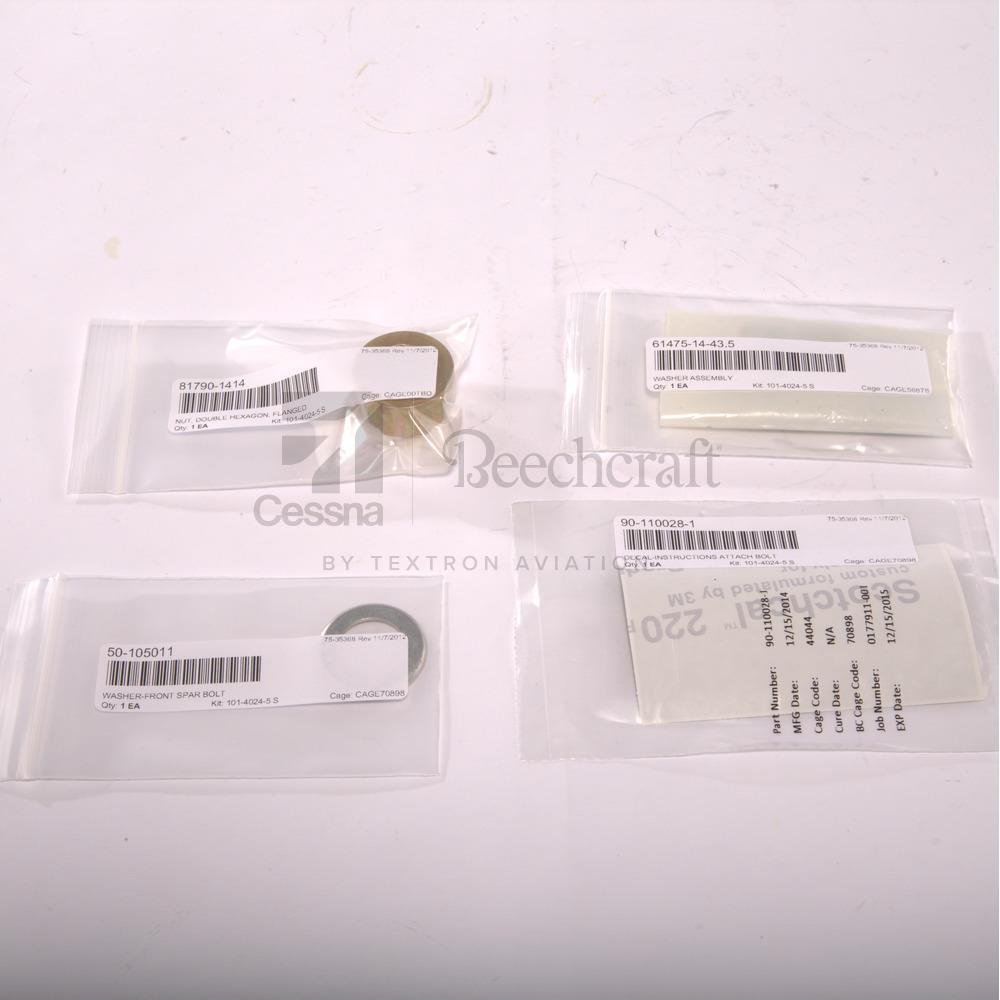

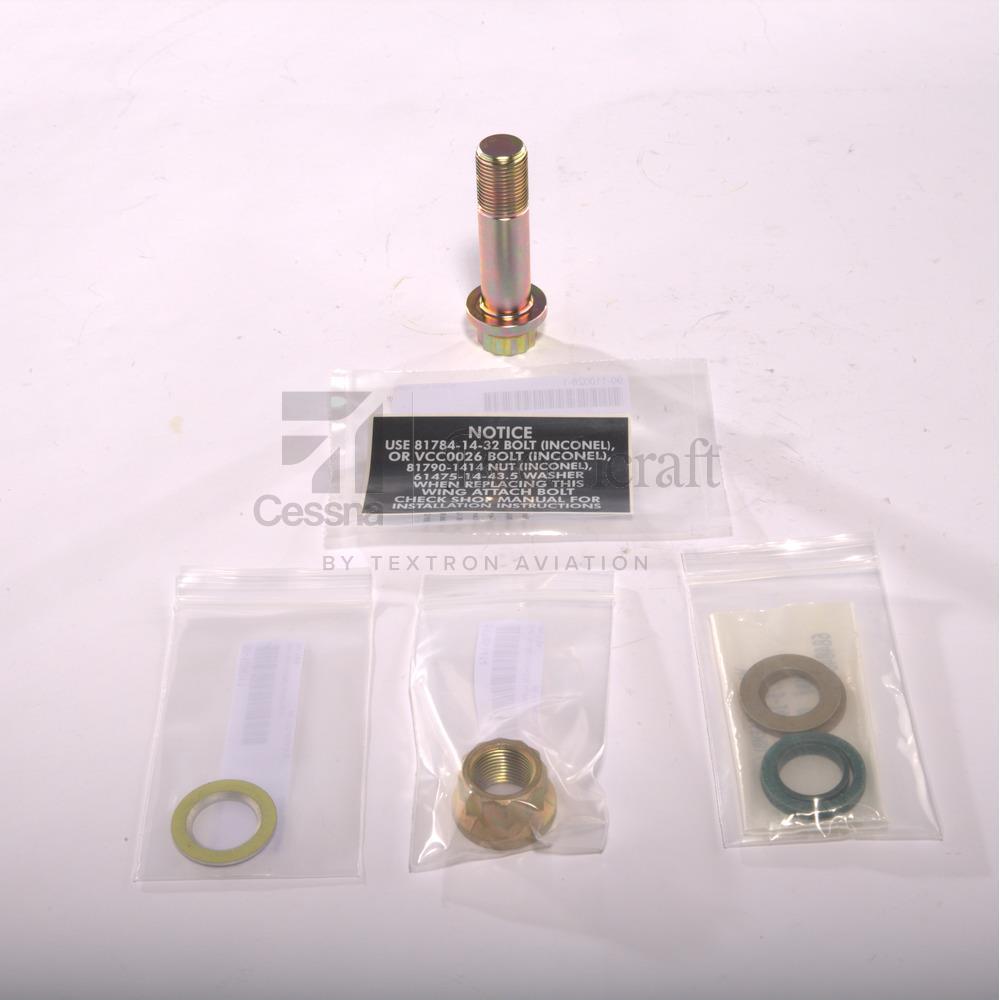

Contains:

Copy of Drawing (Qty 1) - 101-4024
Washer (Qty 1) - 50-105011
Washer (Qty 1) - 61475-14-43.5

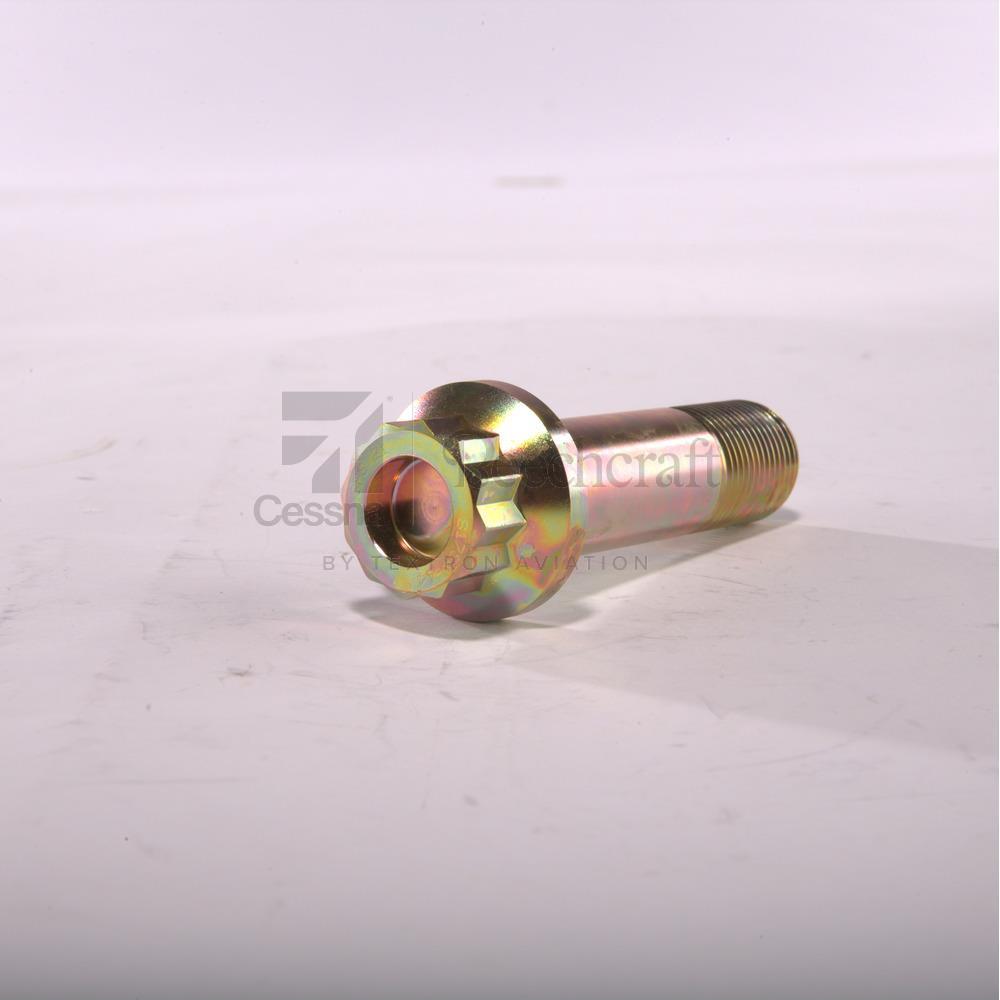

Bolt (Qty 1) - 81784-14-32
Placard (Qty 1) - 90-110028-1
Nut (Qty 1) - 81790-1414

This kit provides parts and information necessary to install an inconel wing attach bolt on the following in-service aircraft:

Model 90 (LJ-68 thru LJ-1084, LJ 1086, and LJ-1087)
Model 100
A100
B100
99 (without kit 90-077, 99-4023, or 100-4007 installed)
E90
A90-1
RU-21A
U-21A
RU-21D
U-21G
JU-21A
A90-1 (RU-21H GRV)
A90-2 (RU-21B)
A90-3 (RU-21C)
A90-4 (RU-21H GRV)

Applicable Aircraft

Click on aircraft model to view serial range in Shop by Model.

King Air 100

List not comprehensive, may be applicable on other models.
