101-4094-0001 | ELT Antenna Blade Installation, Protective Edge
101-4094-0001 | ELT Antenna Blade Installation, Protective Edge
101-4094-0001 | ELT Antenna Blade Installation, Protective Edge

101-4094-0001

KIT- ELT BLADE ANTENNA INSTL

  • Unit of Measure: EA
  • ECCN: 7A994
  • Part Type: Proprietary
  • Packaged Weight: 3.59 Pounds
  • Packaged Dimensions : 12.5 (L) x 12.5 (W) x 6.9 (H) Inches

DESCRIPTION

Kit - ELT Blade Antenna Installation, Protective Edge
Contains:
  • Copy of Drawing (Qty 1) - 101-4094

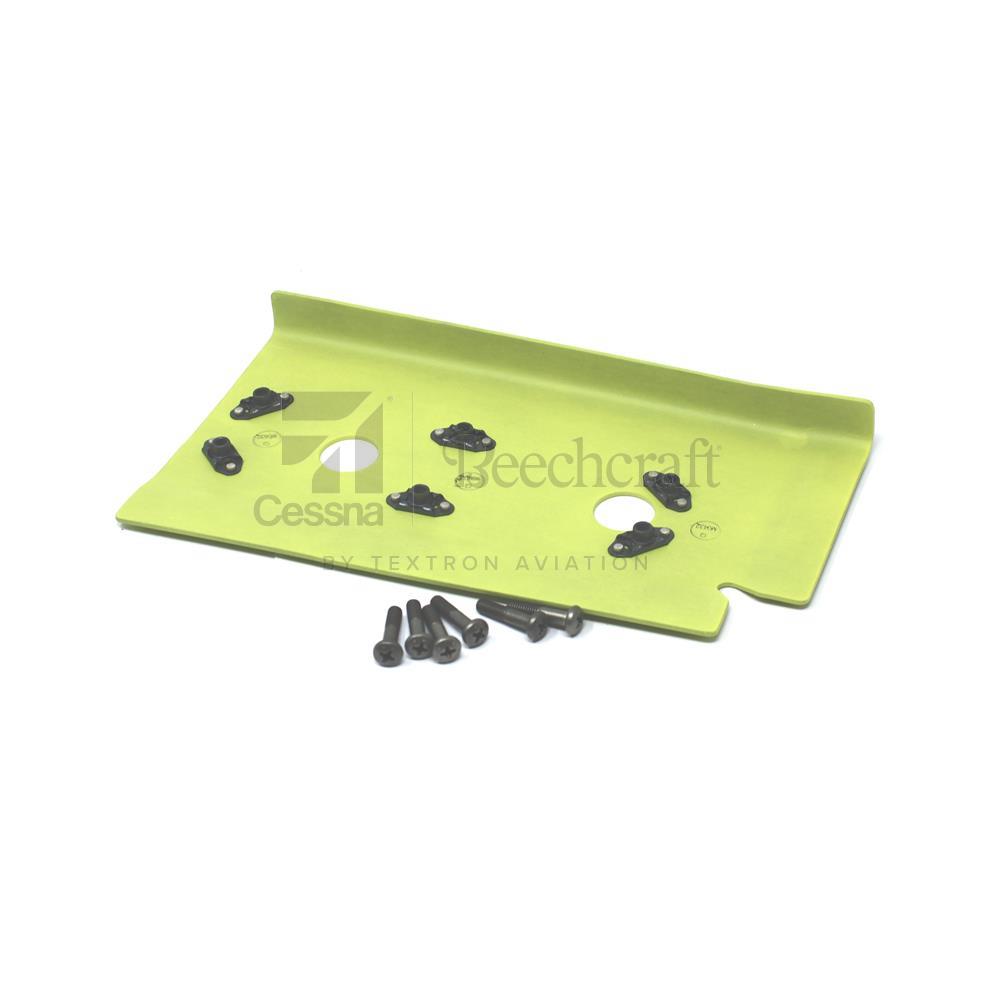

  • Doubler Assembly (Qty 1) - 101-343824-0001

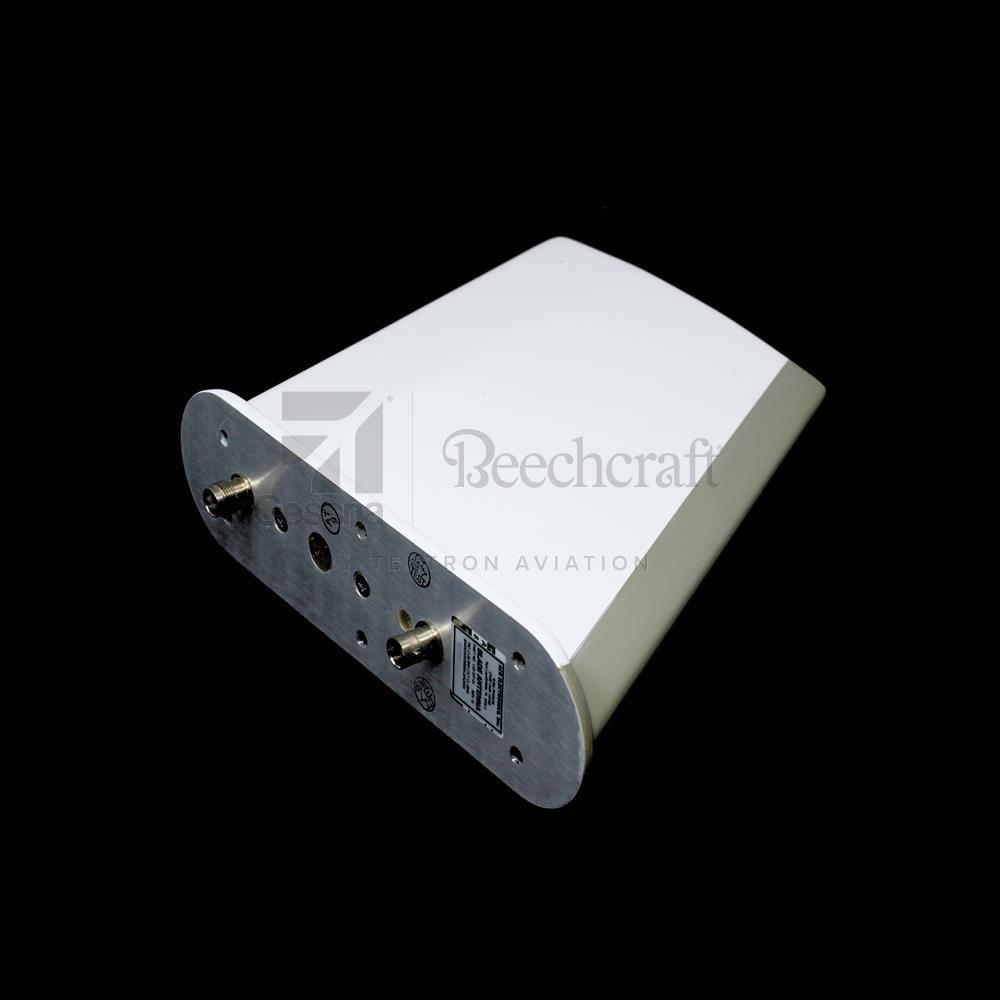

  • ELT Blade Antenna (Qty 1) - 110-337-01
  • Screw (Qty 6) - MS27039C1-13
Required, Not Furnished with Kit:
This kit provides parts and information to replace an Artex ELT Rod Antenna P/N 110-320 or P/N 110-323 with an Artex ELT Blade Antenna P/N 110-337-01 on the aft upper fuselage for the following in-service aircraft models:
  • Beechcraft B200, B200C, B200GT, B200CGT:
    • BB-1795 thru BB-1965 and BB-1967 with factory installed 406 Mhz ELT
    • BB-1966, BB-1968 and after
    • BL-143 thru BL-151 with factory installed 406 Mhz ELT
    • BL-152 and after
    • BY-1 and after
    • BZ-1 and after
  • Beechcraft B300, B300C:
    • FL-337 thru FL-518 with factory installed 406 Mhz ELT
    • FL-519 and after
    • FM-11 thru FM-13 with factory installed 406 Mhz ELt
    • FM-14 and after

NOTES

PRICE VALID UNTIL STOCK DEPLETED

Each delivered OEM part will meet the original manufacturer’s specification or, if the part is not an OEM part, it will meet or exceed the original manufacturer’s specification. Please contact metadata@txtav.com if part information appears to be incorrect.
