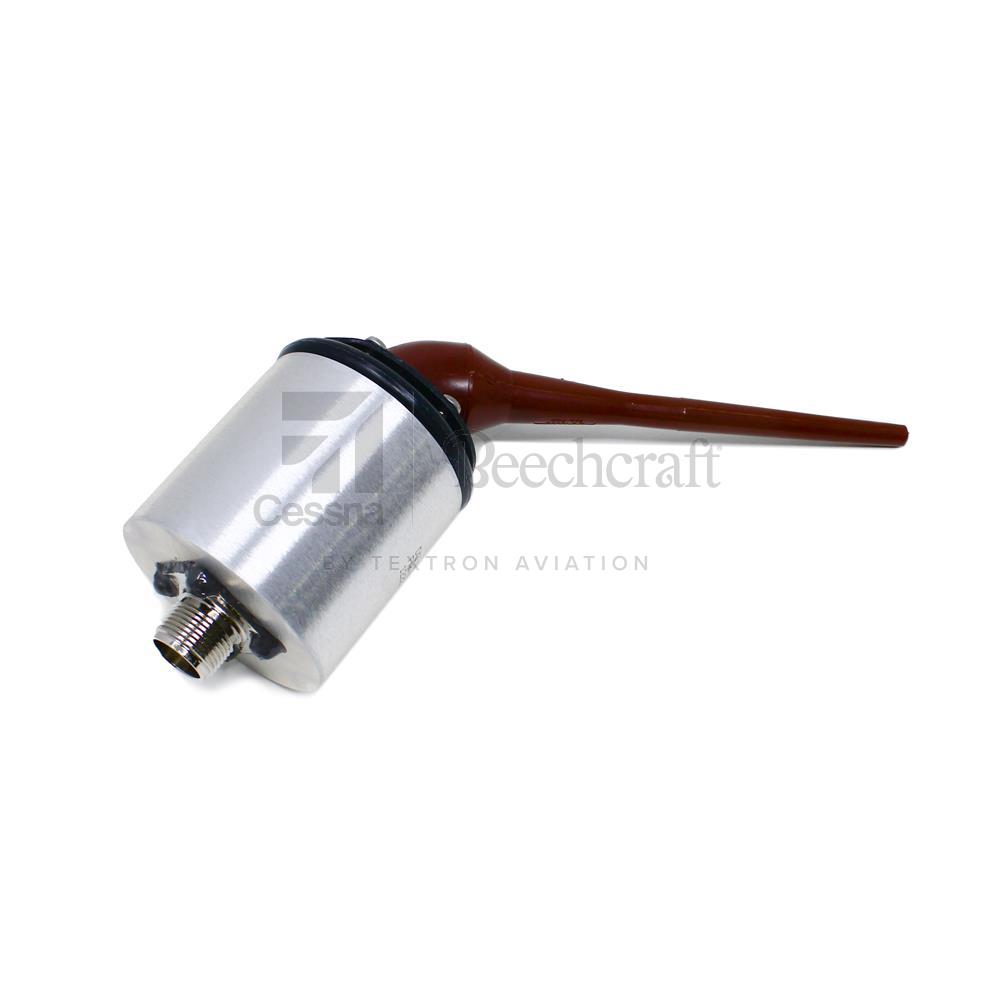

16390 | Lead Thru Insulator and Chuck Jaws with UG 496/U HN Connector Assembly
16390 | Lead Thru Insulator and Chuck Jaws with UG 496/U HN Connector Assembly
16390 | Lead Thru Insulator and Chuck Jaws with UG 496/U HN Connector Assembly

16390

INSULATOR

  • Unit of Measure: EA
  • ECCN: 9A991
  • Weight: 0.42 Pounds
  • Dimensions : 8.7 (L) x 3.4 (W) x 2.5 (H) Inches
  • Packaged Weight: 0.85 Pounds
  • Packaged Dimensions : 8.75 (L) x 8.45 (W) x 3.35 (H) Inches

DESCRIPTION

Lead Thru Insulator and Chuck Jaws with UG 496/U HN Connector Assembly
  • Power handling: 400 Watts pep.
  • Antenna wire: 14379 type 1
  • Voltage rating: 4.2 kV peak
  • Assembly includes:
    • Sleeve (Qty 1) - 13355
    • Elbow (Qty 1) - 13357
    • Gasket, Rubber (Qty 1) - 13371
    • Lead Thru Final Assembly (Qty 1) - 16390-100
    • Screw (Qty 6) - 450064
    • Drilling Template (Qty 1) - 17310
    • Installation Instructions (Qty 1) - 17500-38
    • Ink (As required) - 060148

Applicable Aircraft

Click on aircraft model to view serial range in Shop by Model.

List not comprehensive, may be applicable on other models.

Each delivered OEM part will meet the original manufacturer’s specification or, if the part is not an OEM part, it will meet or exceed the original manufacturer’s specification. Please contact metadata@txtav.com if part information appears to be incorrect.
 In-stock and ready to ship!
