3690024-801

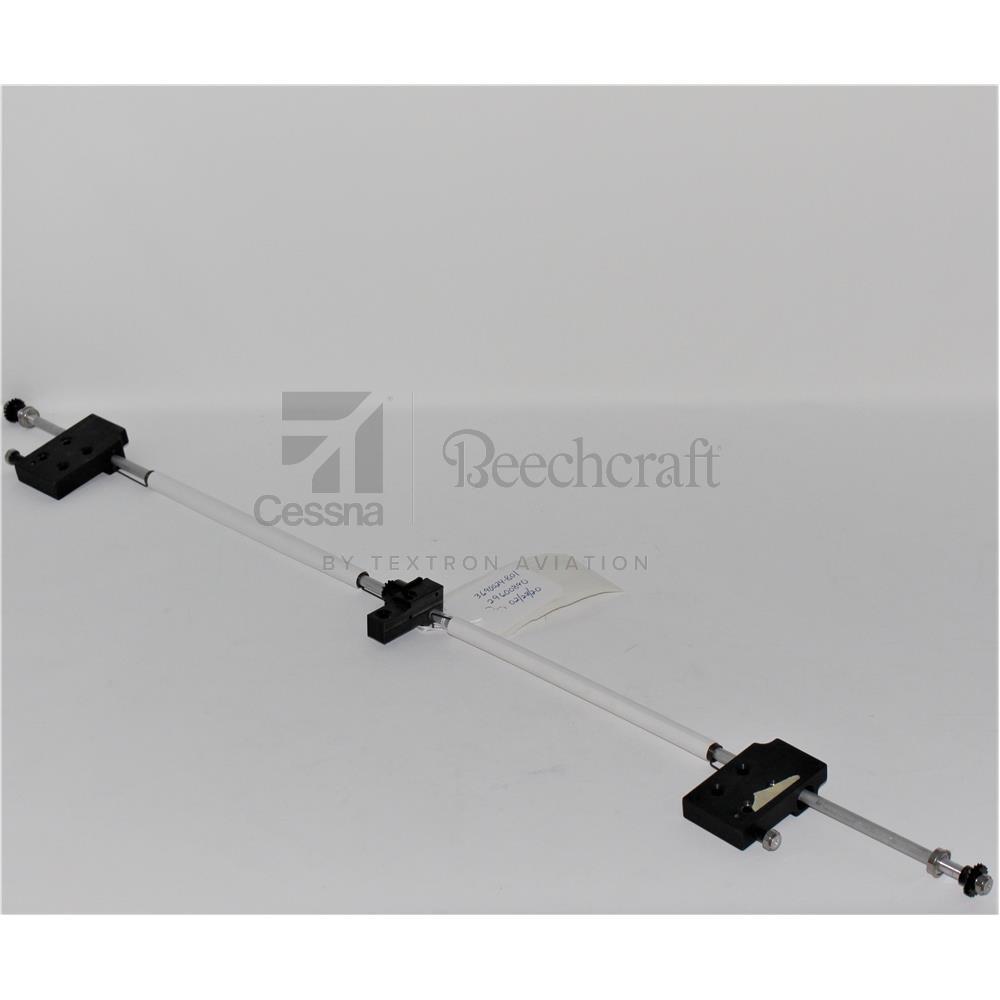

AXLE SPARES MOD KIT

Unit of Measure: EA
ECCN: 9A991
Part Type: Proprietary
Weight: 0.95 Pounds
Dimensions : 28.45 (L) x 2.5 (W) x 0.9 (H) Inches
Packaged Weight: 0.99 Pounds
Packaged Dimensions : 30.25 (L) x 5 (W) x 1 (H) Inches

DESCRIPTION

Exec Table Mechanism Axle Spares Mod Kit

For use with table mechanism modification

Contains:

Screw (Qty 1) - NAS514P832-14
Pin (Qty 1) - NAS561-2-6
Screw (Qty 2) - NAS600-6
Rotary damper (Qty 1) - RN-C2-R201-G1
Spring (Qty 1) - 10804-21
Spring (Qty 1) - 10804-22
Gear (Qty 1) - 30202-5
Bearing block, CTR (Qty 1) - 3690024-3
Screw, set nylon tipped (Qty 2) - BTS-325
Bearing (Qty 2) - DDRIF-814ZZ
Heat shrink, .378" White-CL-HDI (Qty as required) - HIX 3/8 WHITE
Screw (Qty 2) - NAS514P832-20
Bearing block-exec, LH (Qty 1) - 81474-21
Bearing block, RH (Qty 1) - 81474-23
Bearing (Qty 4) - B1-27-Q3
Spacer-bearing (Qty 2) - 81474-49
Axle-exec (Qty 1) - 81474-43
Gear (Qty 2) - 30202-7
Screw (Qty 2) - MS24693-A50 (also MS24693A50)
Pin (Qty 2) - MS16562-3
Pin (Qty 2) - NAS561-2-8

Each delivered OEM part will meet the original manufacturer’s specification or, if the part is not an OEM part, it will meet or exceed the original manufacturer’s specification. Please contact metadata@txtav.com if part information appears to be incorrect.

In-stock and ready to ship!
