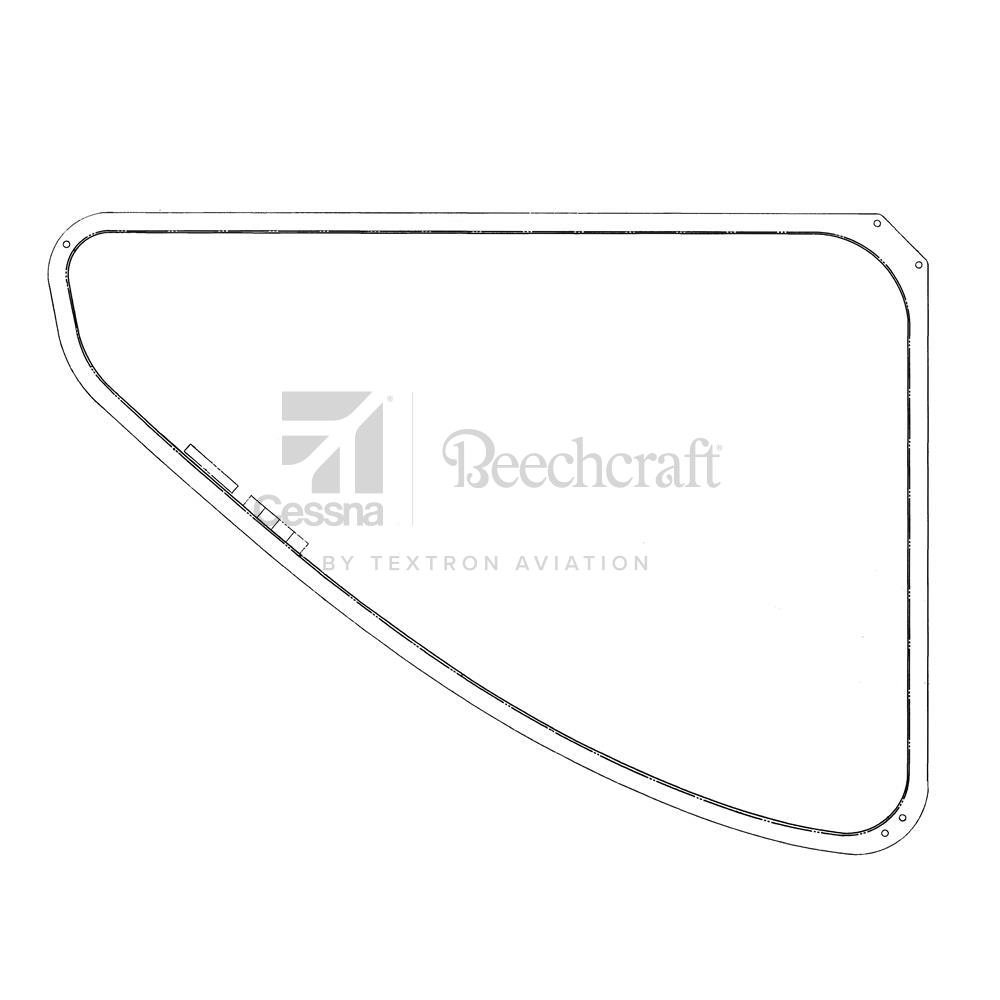

45AS31001-024 | Beechjet Copilot Heated Windshield Assembly, Right

45AS31001-024

WINDSHIELD ASSEMBLY-CO- PILOT

Manufacturer Part Number

45AS31001-024
This part may be eligible for savings with ProAdvantage coverage. For more information click here.
  • Unit of Measure: EA
  • ECCN: 9A991
  • Part Type: Proprietary
  • Packaged Weight: 146 Pounds
  • Packaged Dimensions : 50 (L) x 38 (W) x 18 (H) Inches

DESCRIPTION

Copilot Heated Windshield Assembly, Right
  • The windshield is a laminated construction of two structural plies of 0.350 inch-thick (8.9 mm-thick) stretched acrylic and a non-structural 0.125 inch-thick (3.18 mm-thick) chemically tempered outer ply
  • The anti-ice heating system is encapsulated in polyurethane interlayer inboard of the outer layer glass ply
  • Two temperature sensing elements are installed next to the heating element to provide thermal control information
  • The outside surface of the outer glass face ply has an electrically conductive coating to provide electrostatic charge dissipation and can be electrically checked to determine it's serviceability
  • Surface Seal water repellant applied to the outer glass
  • Model: Beechjet
  • Required for installation: Sealant PR-1425CF B-2


NOTES

Each delivered OEM part will meet the original manufacturer’s specification or, if the part is not an OEM part, it will meet or exceed the original manufacturer’s specification. Please contact metadata@txtav.com if part information appears to be incorrect.
