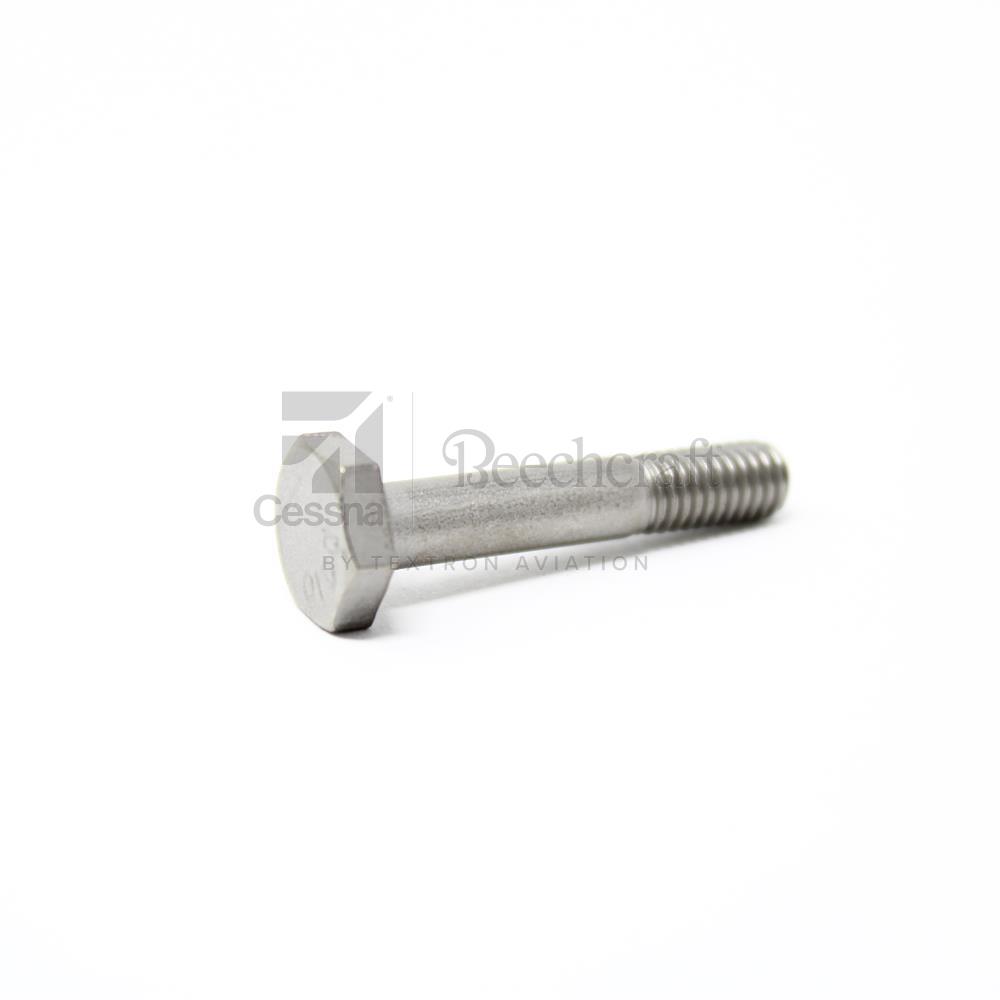

AN3C10A

BOLT, MACHINE

Unit of Measure: EA
Must be a Multiple of: 10
ECCN: EAR99
Weight: 0.01 Pounds
Dimensions : 1.15 (L) x 0.45 (W) x 0.4 (H) Inches
Packaged Weight: 0.12 Pounds
Packaged Dimensions : 4.1 (L) x 3 (W) x 0.65 (H) Inches

DESCRIPTION

Military Standard Aircraft Machine Bolt

Hexagon head
Undrilled head
No Cotter Pin hole
Fine threads
UNF-3A
Material: Corrosion resistant steel
Major diameter: 0.19 inches
Thread per inch (TPI): 32
Grip length: 0.625 inches
Industry standard specification: AIA/NAS NASM3-20

Applicable Aircraft

Click on aircraft model to view serial range in Shop by Model.

List not comprehensive, may be applicable on other models.

Each delivered OEM part will meet the original manufacturer’s specification or, if the part is not an OEM part, it will meet or exceed the original manufacturer’s specification. Please contact metadata@txtav.com if part information appears to be incorrect.

In-stock and ready to ship!

Want to see more?

Log in or Register as a New User to view pricing and availability.

YOUR REGIONAL SUPPORT TEAM

Contact your Regional Support Team for assistance.

These quantities may be available if your Textron Aviation aircraft is grounded. Place your AOG order online.

For Fairbanks inventory, contact Northland Aviation at parts@northlandaviation.com or +1.907-474-0948.

Location	On Hand Quantity
