AN4C12|BOLT

AN4C12

BOLT

  • Unit of Measure: EA
  • Must be a Multiple of: 5
  • ECCN: EAR99
  • Weight: 0.02 Pounds
  • Dimensions : 1.45 (L) x 0.5 (W) x 0.45 (H) Inches
  • Packaged Weight: 0.13 lbs
  • Packaged Dimensions : 4.35 (L) x 4.05 (W) x 0.6 (H) in

DESCRIPTION

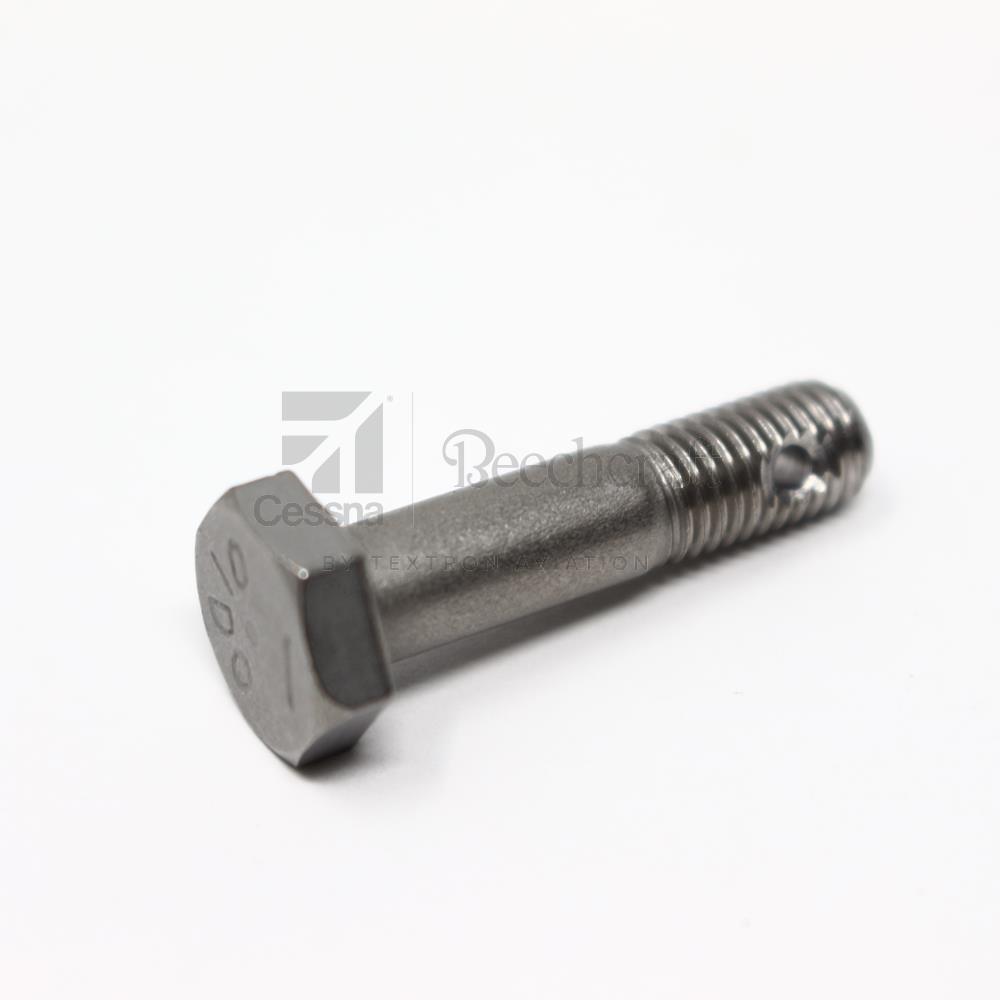

Military Standard Aircraft Machine Bolt

  • Hexagon Head
  • Undrilled Head
  • Cotter Pin Hole
  • Fine Threads
  • UNF-3A
  • Material: Corrosion Resistant Steel
  • Major Diameter: 0.25 in.
  • Thread Per Inch (TPI): 28
  • Length: 1.281 in.
  • Grip Length: 0.813 in.
  • Industry Standard Specification: AIA/NAS NASM3-20

Each delivered OEM part will meet the original manufacturer’s specification or, if the part is not an OEM part, it will meet or exceed the original manufacturer’s specification. Please contact metadata@txtav.com if part information appears to be incorrect.
