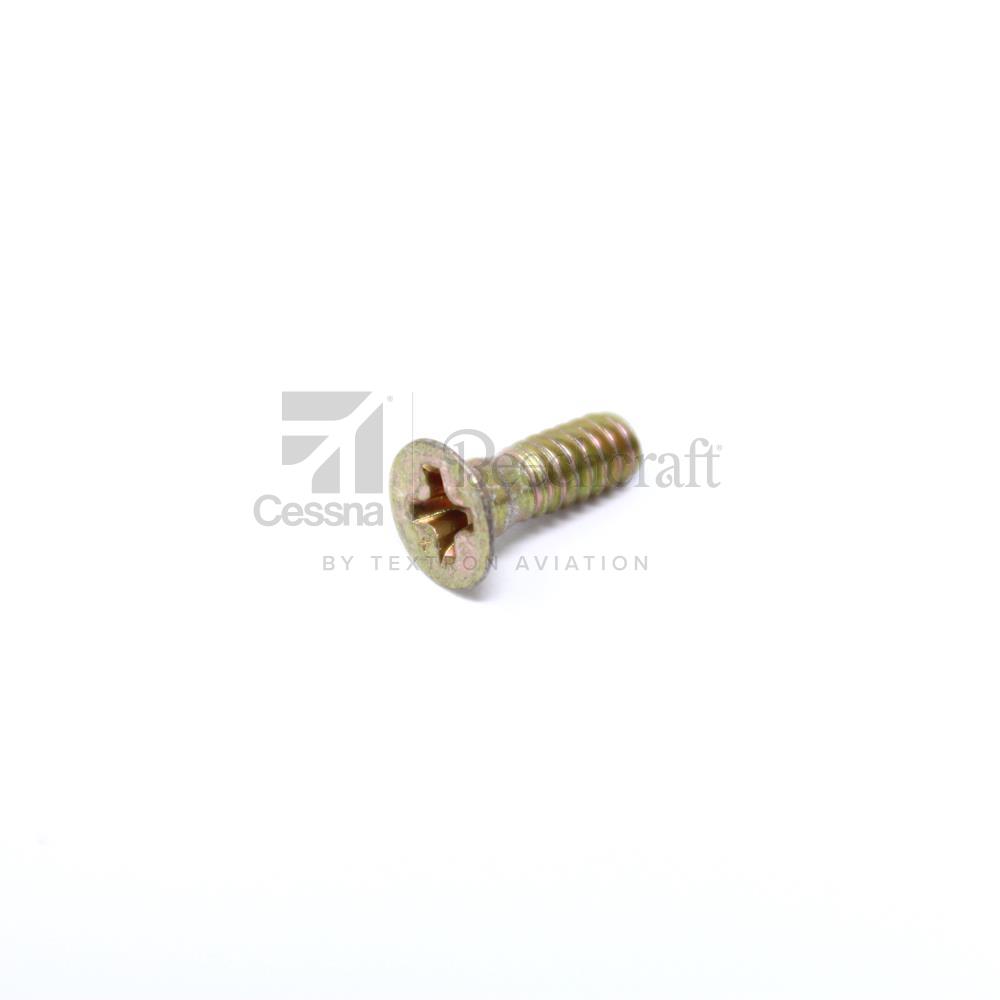

AN509-8R10

SCREW

Unit of Measure: EA
ECCN: EAR99

DESCRIPTION

Military Standard Machine Screw

100° Flat Head
Cruciform Recessed
Coarse Threads
Thread Class: 3A
Material: Steel
Major Diameter: 0.164 in.
Threads Per Inch (TPI): 32
Tensile Strength: 1740 lbf
Length: 0.65625 in.
Grip: 0.21875 in.
Driver: Philips
Industry Standard Specification: AN509

Applicable Aircraft

Click on aircraft model to view serial range in Shop by Model.

List not comprehensive, may be applicable on other models.

Each delivered OEM part will meet the original manufacturer’s specification or, if the part is not an OEM part, it will meet or exceed the original manufacturer’s specification. Please contact metadata@txtav.com if part information appears to be incorrect.

Want to see more?

Log in or Register as a New User to view pricing and availability.

REPLACEMENT
MS24694S7
