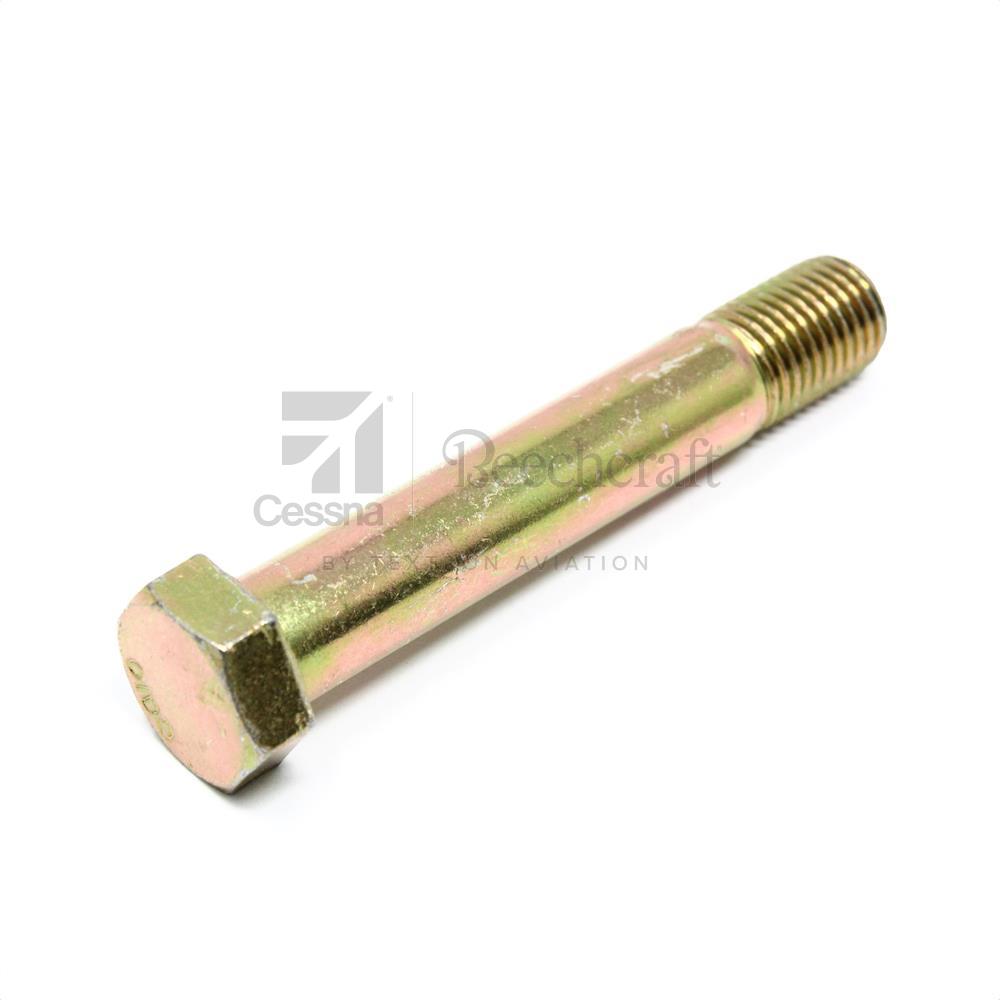

AN7-24A | Aeronautical Standard Machine Bolt

AN7-24A

BOLT

  • Unit of Measure: EA
  • ECCN: EAR99
  • Weight: 0.14 Pounds
  • Dimensions : 2.85 (L) x 0.65 (W) x 0.6 (H) Inches
  • Packaged Weight: 0.14 Pounds
  • Packaged Dimensions : 4 (L) x 2.85 (W) x 0.65 (H) Inches

DESCRIPTION

Military Standard Aircraft Machine Bolt
  • Hexagon head
  • Undrilled head
  • No Cotter Pin hole
  • Fine threads
  • UNF-3A
  • Material: Steel
  • Thread per inch (TPI): 20
  • Grip length: 1.938 inches
  • Industry standard specification: AIA/NAS NASM3-20


Applicable Aircraft

Click on aircraft model to view serial range in Shop by Model.

List not comprehensive, may be applicable on other models.

Each delivered OEM part will meet the original manufacturer’s specification or, if the part is not an OEM part, it will meet or exceed the original manufacturer’s specification. Please contact metadata@txtav.com if part information appears to be incorrect.
 In-stock and ready to ship!

Want to see more?

Log in or Register as a New User to view pricing and availability.

  • SEE TECHNICAL PUBLICATIONS FOR APPLICATION
    S3461-107

}
