Categories / Hydraulic Systems

DMS650-11EX

WIRELESS MEDIA SERVER

Condition: EXCHANGE
Unit of Measure: EA
ECCN: 9A991
Core Acceptability List

Packaged Weight: 4.91 Pounds
Packaged Dimensions : 13.45 (L) x 10.45 (W) x 4.55 (H) Inches

Cores must be returned within 45 days from the date of shipment to receive core credit.

DESCRIPTION

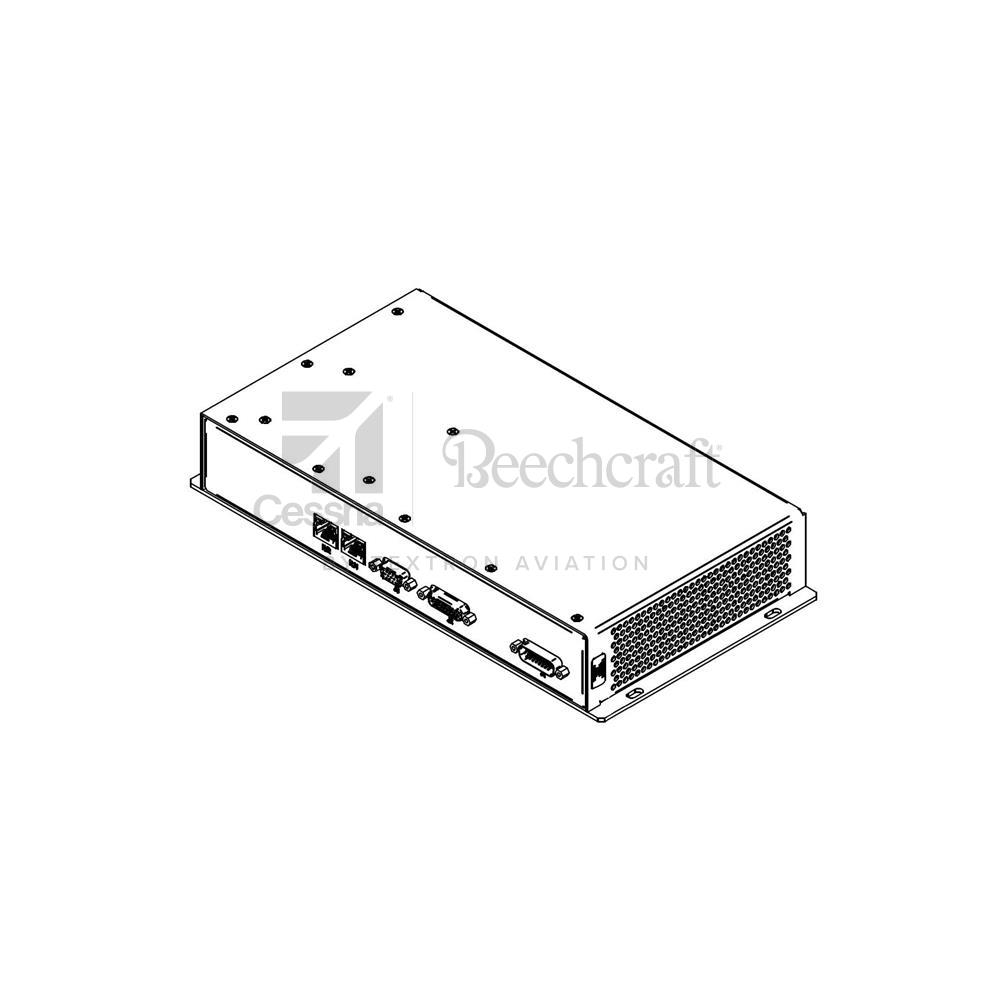

Installation Control Drawing
Power Requirements:

POWER REQUIREMENTS: 2.5A MAX @ +28VDC
- NOTE: ADDITIONAL POWER REQUIREMENTS WHEN EXTERNAL DEVICES
  ARE CHARGING VIA THE DMS650 USB PORTS IS 0.8A MAX

Materials and Finishes

CHASSIS - ALUMINUM, EXTERIOR SURFACES PAINTED WITH
DUPONT POLYESTER WRINKLE POWDER COAT GFK-600-W2
ALL MATERIALS SHALL MEET FLAMMABILITY REQUIREMENTS
OF 14 CFR 25.853a

Recommended Interconnects:

SOCKET CONNECTOR
HIGH DENSITY DB26S: M24308/2-287, QTY: 1
CONTACTS: M39029/57-354, QTY: 26
PLUG CONNECTOR
HIGH DENSITY DB26P: M24308/4-265, QTY: 1
CONTACTS: M39029/58-360, QTY: 26
PLUG CONNECTOR
HIGH DENSITY DB15P: M24308/4-264, QTY: 1
CONTACTS: M39029/58-360, QTY: 15
PLUG CONNECTOR
RJ45, CAT5e STP, QTY: 2

Each delivered OEM part will meet the original manufacturer’s specification or, if the part is not an OEM part, it will meet or exceed the original manufacturer’s specification. Please contact metadata@txtav.com if part information appears to be incorrect.
