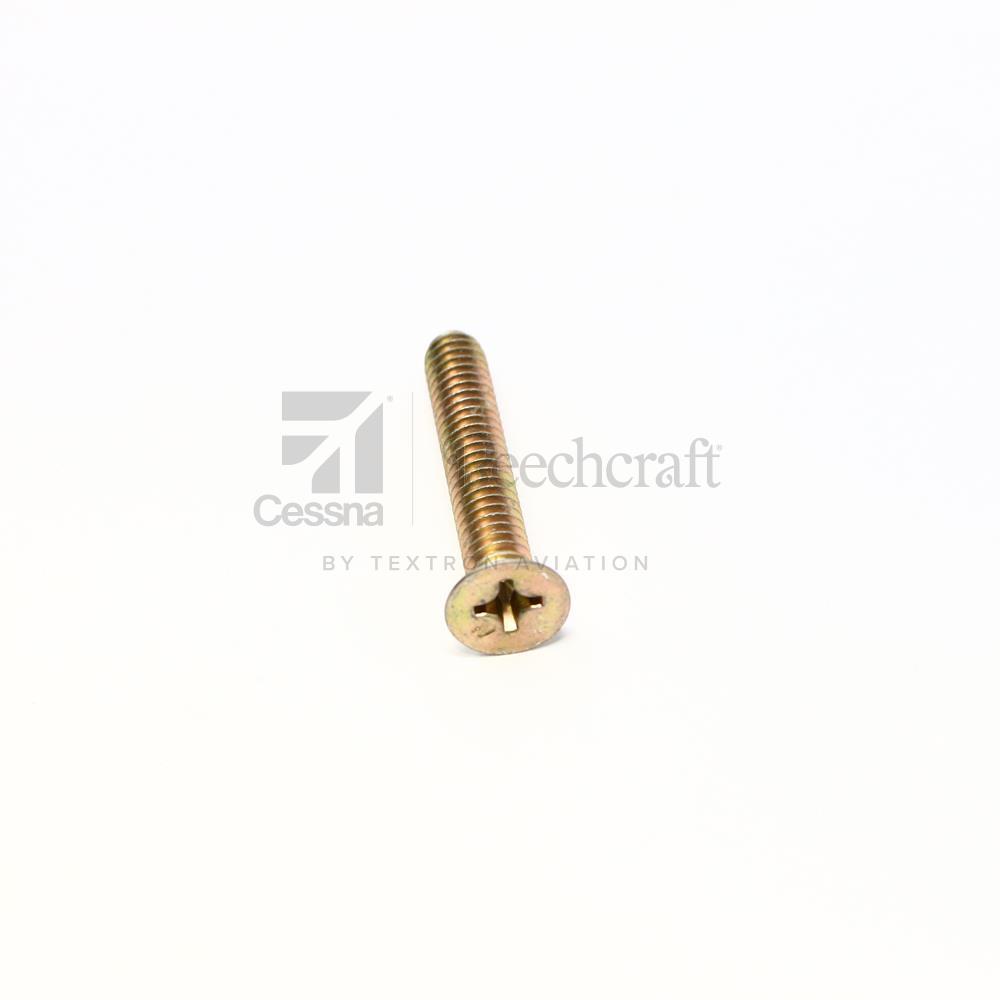

MS24693-S102|SCREW

MS24693-S102

SCREW

  • Unit of Measure: EA
  • ECCN: 9A991
  • Packaged Weight: 0.03 lb
  • Packaged Dimensions : 4 (L) x 6.25 (W) x 0.45 (H) in

DESCRIPTION

Military Standard Machine Screw

  • 100° Flat Countersunk Head
  • Cruciform Recess
  • Course Threads
  • Material: Carbon Steel
  • Finish: Cadmium Plated
  • Length: 1.5 in.
  • Drive: Philips
  • Head Width: 0.507 in.
  • Major Diameter: 0.25 in.
  • Threads Per Inch(TPI): 20
  • Tensile Strength: 1910 lbf
  • Industry Standard Certification: AIA/NAS NASMS24693

Each delivered OEM part will meet the original manufacturer’s specification or, if the part is not an OEM part, it will meet or exceed the original manufacturer’s specification. Please contact metadata@txtav.com if part information appears to be incorrect.
