MS24693-S293|SCREW
MS24693-S293|SCREW
MS24693-S293|SCREW

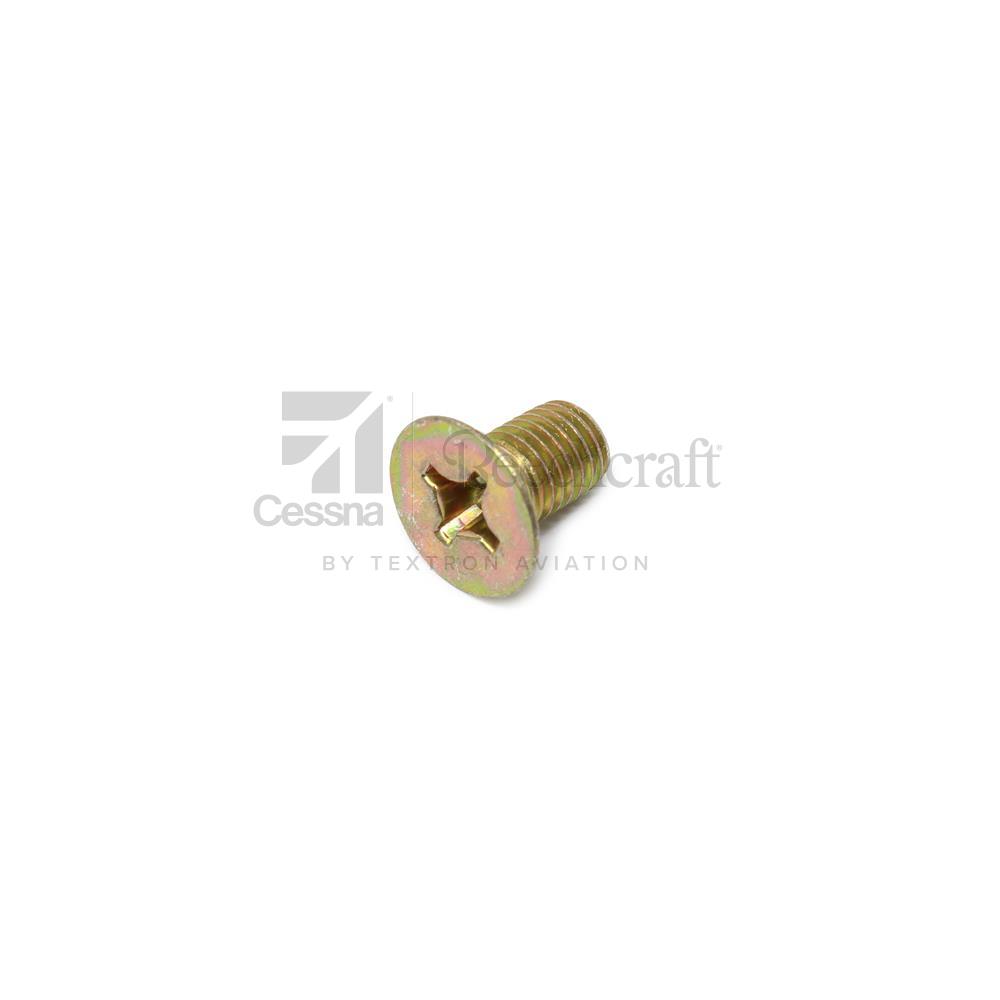

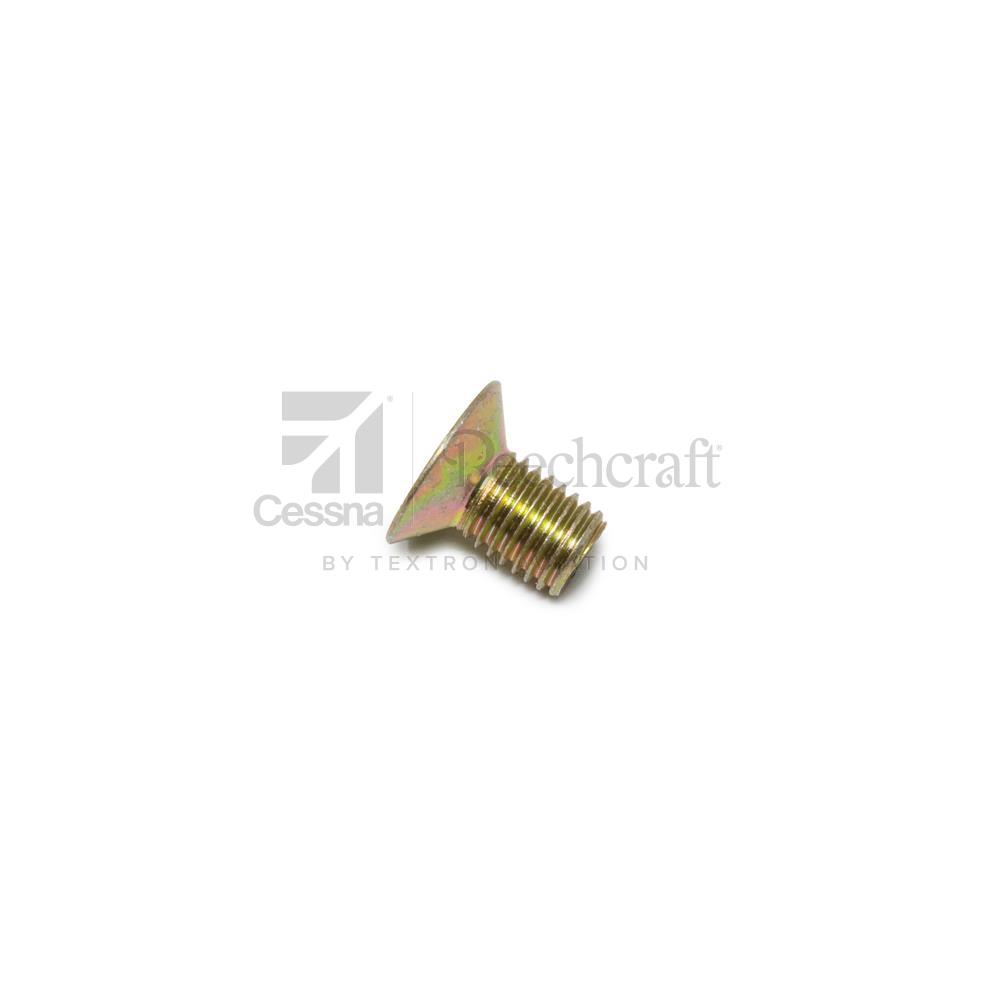

MS24693-S293

SCREW

  • Unit of Measure: EA
  • Must be a Multiple of: 100
  • ECCN: EAR99
  • Weight: 0.01 Pounds
  • Dimensions : 0.42 (L) x 0.48 (W) x 0.48 (H) Inches
  • Packaged Weight: 0.65 Pounds
  • Packaged Dimensions : 4.05 (L) x 2.8 (W) x 1.2 (H) Inches

DESCRIPTION

Military Standard Machine Screw
  • 100° Flat Countersunk Head
  • Cruciform Recess
  • Fine Threads
  • Material: Carbon Steel
  • Finish: Cadmium Plated
  • Length: 0.437 in.
  • Drive: Philips
  • Head Width: 0.507 in.
  • Major Diameter: 0.25 in.
  • Threads Per Inch(TPI): 28
  • Tensile Strength: 2180 lbf
  • Industry Standard Certification: AIA/NAS NASMS24693

Each delivered OEM part will meet the original manufacturer’s specification or, if the part is not an OEM part, it will meet or exceed the original manufacturer’s specification. Please contact metadata@txtav.com if part information appears to be incorrect.
 In-stock and ready to ship!
