MS28741-5-1070|B-5 STAND PART

MS28741-5-1070

B-5 STAND PART

  • Unit of Measure: EA

DESCRIPTION

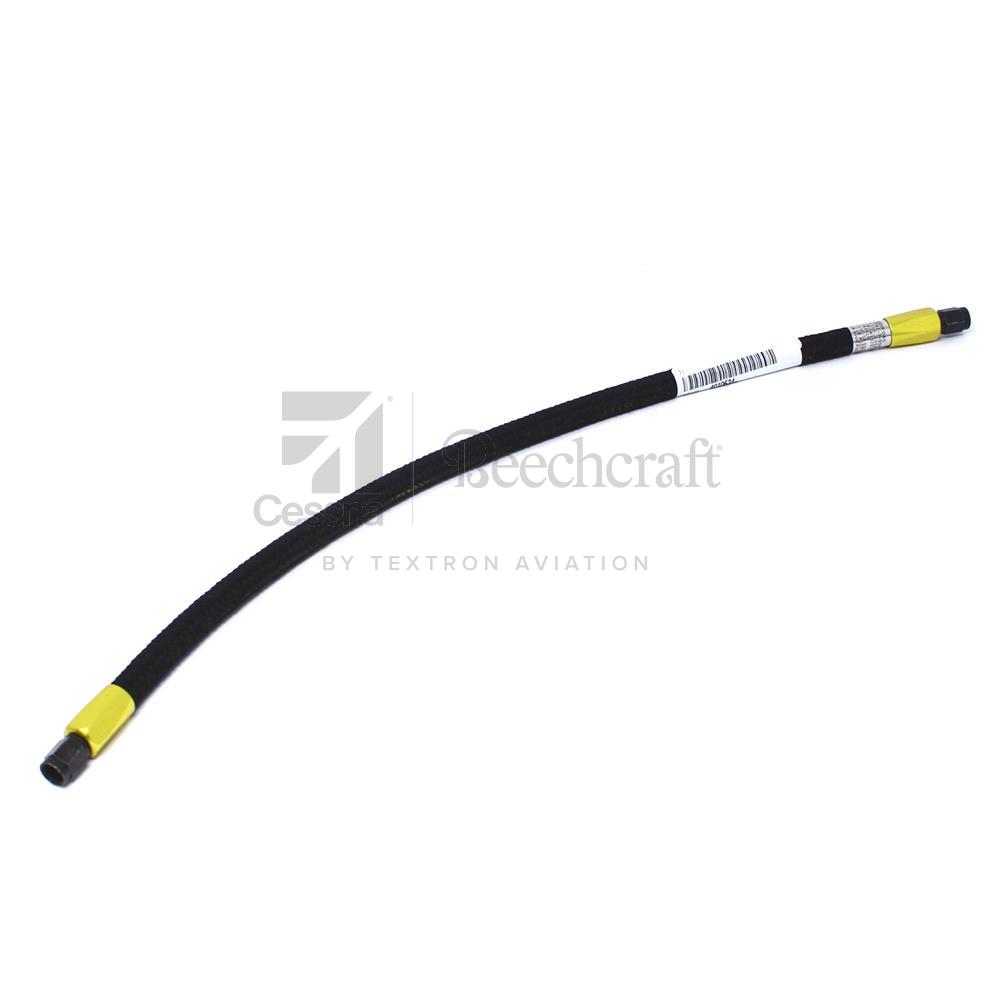

Military Standard Hose Assembly

  • Recommended Use for Medium Pressure Applications
  • Detacheable End Fitting
  • Reinforced Corrosion Resistant Steel Braid
  • Synthetic Rubber Inner Tube
  • Inner Diameter: 0.25 in.
  • Outer Diameter: 0.578 in.
  • Fitting Orientation: Straight to Straight
  • Fitting Material: 0.578
  • A Side Nipple Type: 37 Degree Flared
  • B Side Nipple Type: 37 Degree Flared
  • Burst Pressure: 12000 PSIG
  • Fuel Operating Pressure: 1000 PSIG
  • Fuel Proof Pressure: 1500 PSIG
  • Hydraulic Operating Pressure: 3000 PSIG
  • Hydraulic Proof Pressure: 6000 PSIG
  • Oil Operating Pressure: 600 PSIG
  • Proof Pressure: 1000 PSIG
  • Socket Threading: .5000-20 UNJF-3B
  • Hose Length: 108.5 in.
  • Bend Radius: 3.375 in.
  • Industry Standard Specification: MS28741

Each delivered OEM part will meet the original manufacturer’s specification or, if the part is not an OEM part, it will meet or exceed the original manufacturer’s specification. Please contact metadata@txtav.com if part information appears to be incorrect.
