Parts

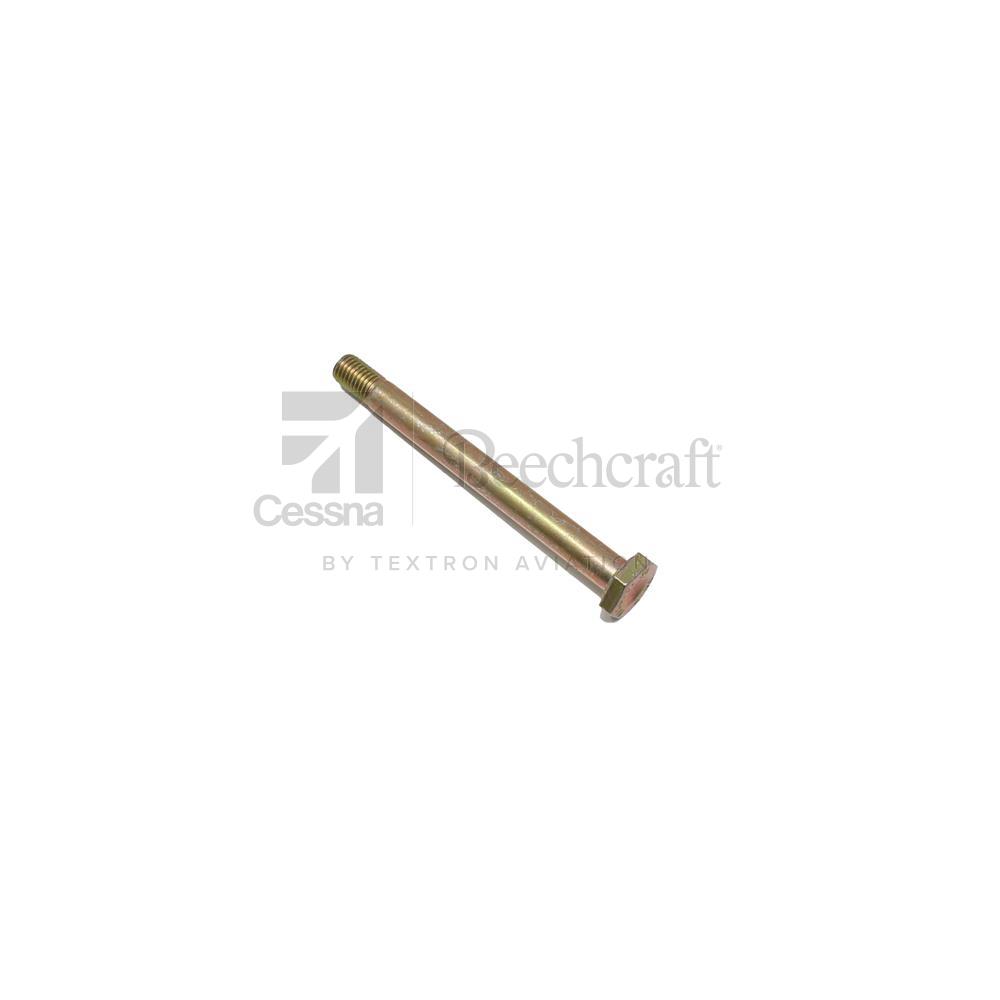

NAS6604-36|BOLT, HEX, CLOSE TOLERANCE

NAS6604-36

BOLT, HEX, CLOSE TOLERANCE

  • Unit of Measure: EA
  • Must be a Multiple of: 10
  • ECCN: EAR99
  • Weight: 0.04 lbs
  • Dimensions : 2.8 (L) x 0.5 (W) x 0.44 (H) in
  • Packaged Weight: 0.42 lbs
  • Packaged Dimensions : 4.1 (L) x 2.8 (W) x 0.8 (H) in

DESCRIPTION

Military Standard Tension Bolt

  • Hexagon Head
  • Close Tolerance
  • Fine Threads
  • UNJF-3A
  • Non-Locking
  • Locking Type: N/A
  • Undrilled Head
  • Material: Alloy Steel
  • Cadmium Plated
  • Major Diameter: 0.25 in.
  • Threads Per Inch (TPI): 28
  • Length: 2.675 in.
  • Grip: 2.25 in.
  • Normal Sized Shank
  • Industry Standard Specification: AIA/NAS NAS6603-6620

Each delivered OEM part will meet the original manufacturer’s specification or, if the part is not an OEM part, it will meet or exceed the original manufacturer’s specification. Please contact metadata@txtav.com if part information appears to be incorrect.
 In-stock and ready to ship!

Want to see more?

Log in or Register as a New User to view pricing and availability.
