King Air 200 Supplemental Type Certificate (STC) Propeller Kit
- Contains:

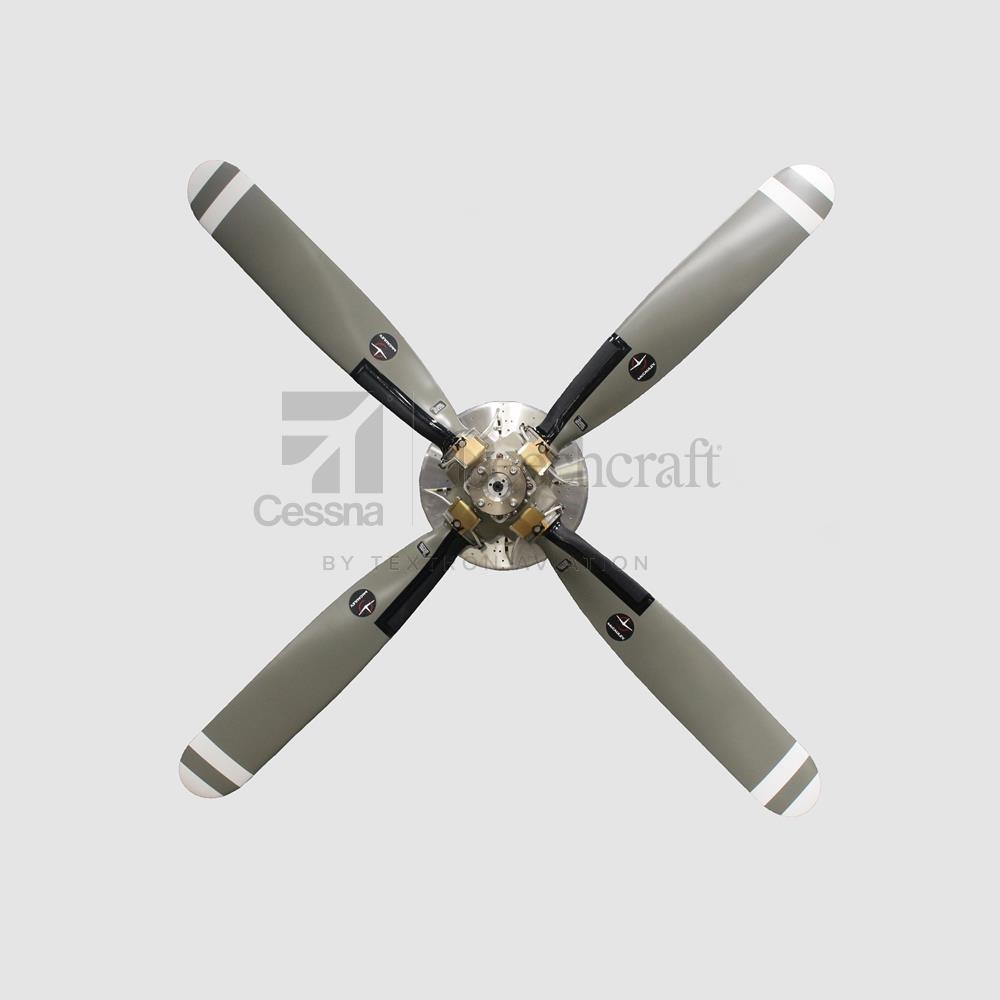

- Propeller Assemblies (Qty 2) - 4HFR34C771/94LA-0
- Polished Spinner Assembly (Qty 2) - E6350
- Installation Drawing (Qty 1) - D60145
- Installation Instructions (Qty 1) - TR830
- Flight Manual Supplement (Qty 1) - TR702
- Ammeter (Qty 1) - A60008
- De-Ice Circuit Breaker Switch (Qty 1) - A60006
- Pin (Qty 5) - A60013
- Pin Extraction Tool (Qty 1) - A60012
- Applicable aircraft:
- Beechcraft King Air 200, 200C, 200CT, 200T, A200C (UC-12B) - PT6A-41 Engine
- Beechcraft King Air A200CT (RC-2D, C-12D, FWC-12D), B200, B200C (C-12F), B200CT, B200T - PT6A-42 Engine
- Number of blades: 4
- Blade design: Elliptical
- Installed propeller and spinner weight: 154 pounds each approximately
- Aircraft changing from Hartzell de-ice to McCauley de-ice systems require supplemental de-ice kit PL-60035
- This kit offers better propeller synchronization vs kit PL-60036 via usage of a larger piston/cylinder, usage of larger diameter blade bearings and usage of teflon strips in hub sockets. The propellers in this kit also have a longer time between overhaul vs the propellers in the PL-60036 kit (5,000 hrs vs 3.500 hrs)
