PL-60179 | Piper Cherokee Six, Lance, Lance II, Saratoga, and Saratoga SP Supplemental Type Certificate (STC) Propeller Kit

PL-60179

C433 PIPER PA-32-STC

This part may be eligible for savings with ProAdvantage coverage. For more information click here.
  • Unit of Measure: EA
  • Shelf Life: 72 Months
  • ECCN: 9A991
  • Part Type: Proprietary
  • Packaged Weight: 130 Pounds
  • Packaged Dimensions : 79 (L) x 69 (W) x 22 (H) Inches

DESCRIPTION

Piper PA-32-300, PA-32R-300, PA-32RT-300, PA-32-301, PA-32R-301 Supplemental Type Certificate (STC) Propeller Kit
  • Contains:

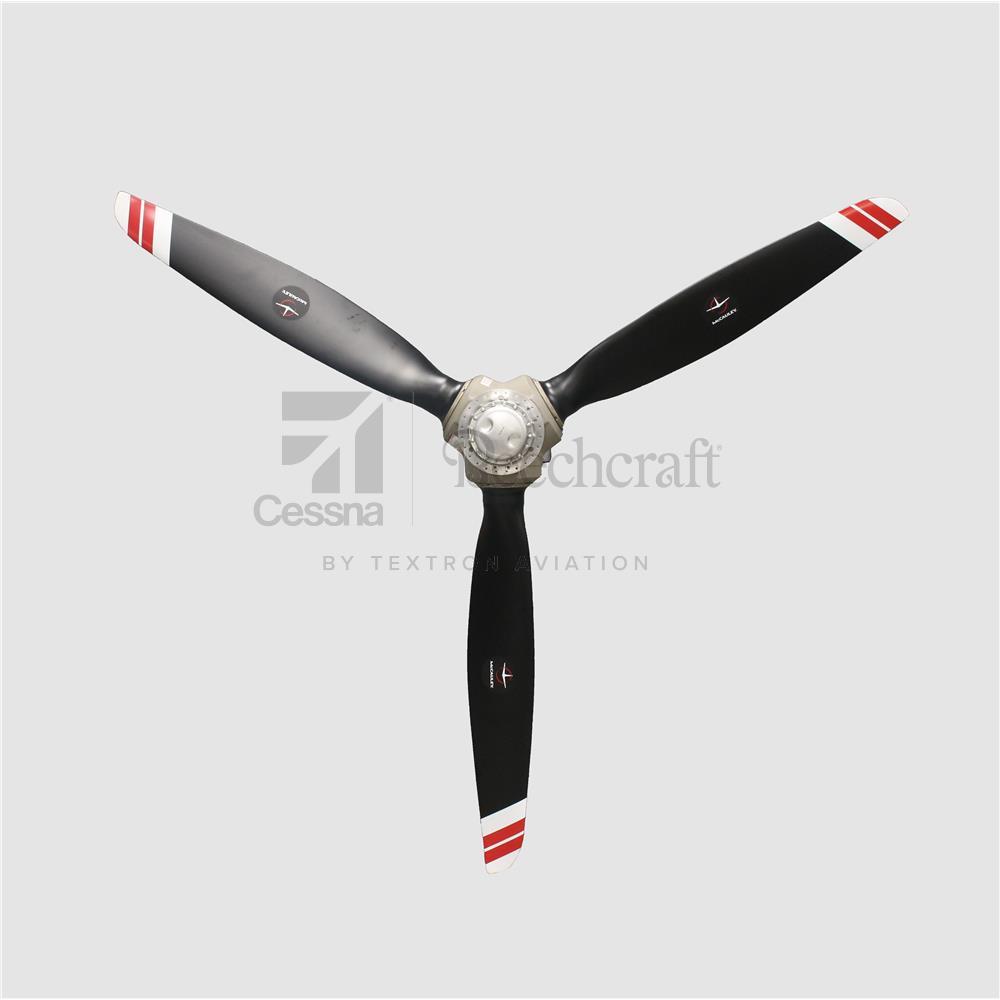

    • Propeller Assembly (Qty 1) - B3D36C433/80VSA-1
    • Polished Aluminum Spinner Assembly (Qty 1) - D6012-1 (order as: D6012-1A)
    • Installation Drawing (Qty 1) - D60178
    • Installation Instruction (Qty 1) - TR863
    • Flight Manual Supplement (Qty 1) - TR862
  • Applicable Aircraft:
    • Piper PA-32-300 Cherokee Six 300 - IO-540-K1A5, -K1G5 Engine
    • Piper PA-32R-300 Lance - IO-540-K1A5D, -K1G5D Engine
    • Piper PA-32RT-300 Lance II - IO-540-K1G5D Engine
    • Piper PA-32-301 Saratoga - IO-540-K1G5 Engine
    • Piper PA-32R-301 Saratoga (SP) - IO-540-K1G5D Engine
  • Number of blades: 3
  • Blade design: Scimitar
  • Installed propeller and spinner weight: 74.2 pounds approximately

NOTES

Part will ship directly from Columbus Georgia 8130 FORM REQUIRED TO BE SIGNED BY DAR BEFORE SHIPPING DAR SIGNATURE MAY DELAY SHIPPING 24 HRS SAME DAY SHIPPING CUTOFF TIME 4:00PM EST

Each delivered OEM part will meet the original manufacturer’s specification or, if the part is not an OEM part, it will meet or exceed the original manufacturer’s specification. Please contact metadata@txtav.com if part information appears to be incorrect.
 In-stock and ready to ship!

Want to see more?

Log in or Register as a New User to view pricing and availability.
