PL-60297 | Piper PA-32 with LoPresti Cowl Mod Supplemental Type Certificate Propeller Kit

PL-60297

C433 PIPER PA32 SERIES- STC

  • Unit of Measure: EA
  • Shelf Life: 72 Months
  • ECCN: 9A991
  • Part Type: Proprietary
  • Packaged Weight: 120 Pounds
  • Packaged Dimensions : 79 (L) x 69 (W) x 22 (H) Inches

DESCRIPTION

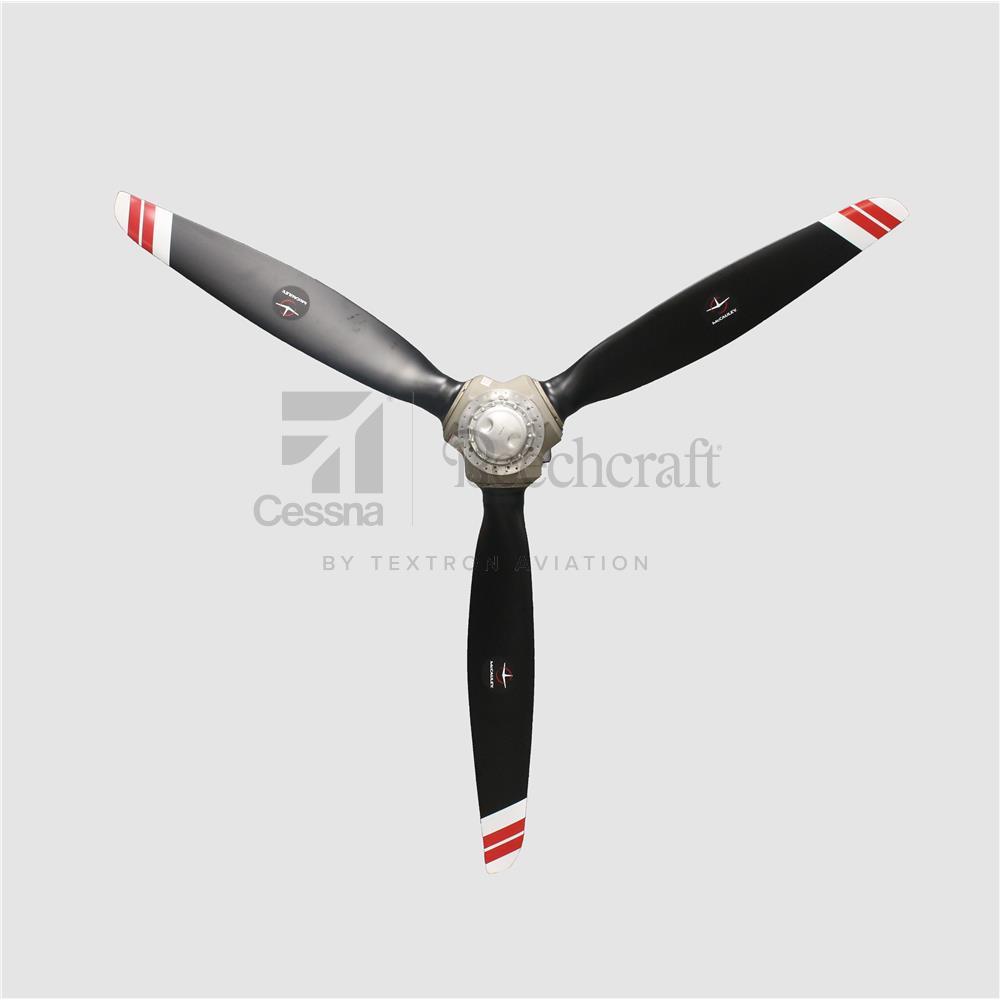

Piper PA-32 with LoPresti Cowl Mod Supplemental Type Certificate (STC) Propeller Kit
  • Contains:
    • Propeller Assembly (Qty 1) - B3D36C433/80VSA-1
    • Polished Aluminum Spinner Assembly (Qty 1) - D6614
    • Installation Drawing (Qty 1) - D60178
    • Installation Instruction (Qty 1) - TR863
    • Flight Manual Supplement (Qty 1) - TR862
    • Flight Manual Supplement (Qty 1) - TR871
  • Applicable aircraft:
    • Piper PA-32-300 - IO-540-K1A5, K1G5 Engine
    • Piper PA-32R-300 - IO-540-K1A5D, K1G5D Engine
    • Piper PA-32RT-300 - IO-540-K1G5 Engine
    • Piper PA-32R-301(SP) - IO-540-K1G5D Engine
  • Number of blades: 3
  • Blade design: Scimitar
  • Installed propeller and spinner weight: 74.2 pounds approximately
  • LoPresti cowling must be made for the McCauley propeller

Each delivered OEM part will meet the original manufacturer’s specification or, if the part is not an OEM part, it will meet or exceed the original manufacturer’s specification. Please contact metadata@txtav.com if part information appears to be incorrect.
